NATS Client Protocol Reference

NATS is a lightweight, high-performance messaging system whose client protocol is designed with extreme simplicity: a pure text protocol over TCP, where each command ends with \r\n (CRLF), fields are separated by whitespace (spaces or tabs), and multiple consecutive whitespace characters are treated as a single separator. Operation commands are case-insensitive, but Subject names are case-sensitive.

This article fully describes the NATS client protocol's handshake flow, all command formats, Subject naming rules and wildcards, error codes, and keep-alive mechanism.

Connection Handshake

After a client connects to the server, the handshake proceeds in the following order:

Server → Client:  INFO {...}\r\n
Client → Server:  CONNECT {...}\r\n
Client → Server:  PING\r\n
Server → Client:  PONG\r\n

Upon receiving INFO, the client responds with CONNECT to complete authentication and capability declaration. The client then proactively sends PING; only after receiving the server's PONG is the connection truly ready and normal Pub/Sub operations can begin. This PING/PONG exchange ensures the communication link between both sides is fully operational.

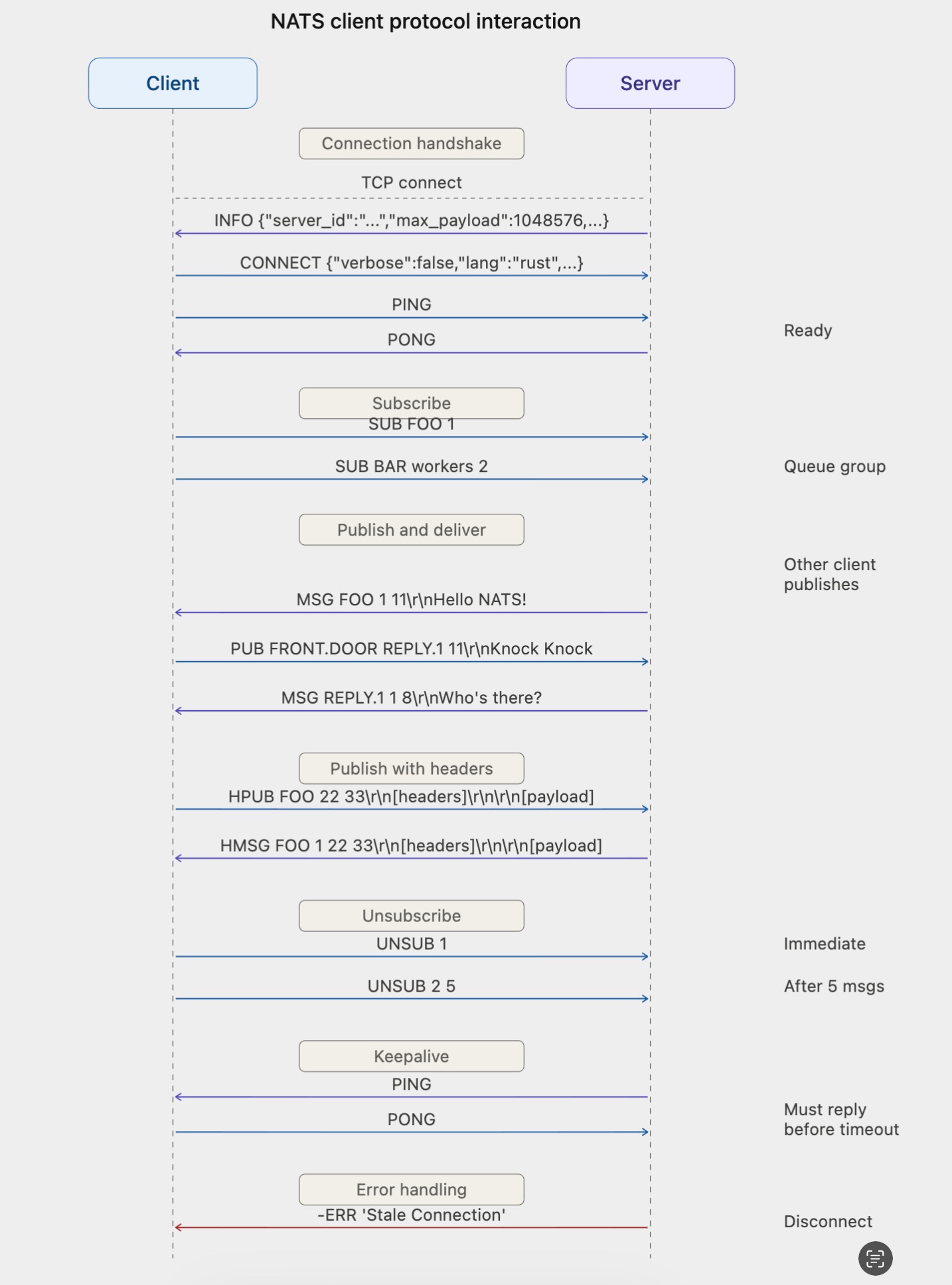

Below is the complete interaction sequence diagram for the NATS client protocol, covering the full flow of connection handshake, subscription, publish delivery, Header messages, unsubscription, keep-alive heartbeats, and error handling:

Command Reference

INFO

The server immediately sends INFO upon accepting a connection, informing the client of its capabilities and connection requirements.

Format:

INFO {<json>}\r\n

Example:

INFO {"server_id":"Zk0GQ3JBSrg3oyxCRRlE09","server_name":"my-nats","version":"2.10.0","proto":1,"host":"0.0.0.0","port":4222,"headers":true,"auth_required":false,"tls_required":false,"tls_available":false,"max_payload":1048576,"jetstream":false}\r\n

JSON Field Descriptions:

Field	Type	Required	Description
server_id	string	Yes	Unique identifier for the server node
server_name	string	Yes	Server node name
version	string	Yes	NATS Server version number
go	string	Yes	Go version used to compile
host	string	Yes	IP address the server is listening on
port	int	Yes	Port the server is listening on
headers	bool	Yes	Whether message Headers (HPUB/HMSG) are supported
max_payload	int	Yes	Maximum allowed Payload size in bytes
proto	int	Yes	Protocol version; 1 indicates support for dynamic INFO updates and Echo
auth_required	bool	No	Whether client authentication is required
tls_required	bool	No	Whether a TLS encrypted connection is required
tls_verify	bool	No	Whether the client is required to present a certificate
tls_available	bool	No	Whether the server optionally supports TLS
client_id	uint64	No	Internal client ID assigned by the server
client_ip	string	No	Client's IP address
nonce	string	No	Random nonce for NKey authentication
cluster	string	No	Cluster name
domain	string	No	NATS domain
connect_urls	[]string	No	List of other node addresses in the cluster, for client reconnection
ws_connect_urls	[]string	No	WebSocket connection address list
ldm	bool	No	Whether the server is in Lame Duck mode (about to shut down)
jetstream	bool	No	Whether JetStream is supported
git_commit	string	No	Git commit hash of the build
cluster_dynamic	bool	No	Whether the cluster supports dynamic routing; only present when cluster routes are configured
xkey	string	No	Server's X25519 public key for message-level encryption (NKey encryption extension); not used in standard deployments

When proto >= 1, the server may push new INFO messages at any time after the connection is established. The client should continuously listen and update its local cluster topology information.

CONNECT

After receiving INFO, the client must respond with CONNECT to complete the handshake, providing authentication information and capability declarations.

Format:

CONNECT {<json>}\r\n

Example:

CONNECT {"verbose":false,"pedantic":false,"tls_required":false,"name":"my-client","lang":"go","version":"1.34.0","protocol":1,"echo":true,"headers":true}\r\n

JSON Field Descriptions:

Field	Type	Required	Description
verbose	bool	Yes	Whether to enable +OK acknowledgment responses; setting to false reduces unnecessary traffic
pedantic	bool	Yes	Whether to enable strict format validation
tls_required	bool	Yes	Whether a TLS connection is required
lang	string	Yes	Client implementation language, e.g. go, rust, java
version	string	Yes	Client library version number
name	string	No	Client name, used in server logs
protocol	int	No	Protocol version; 1 indicates support for dynamic INFO updates
auth_token	string	Conditional	Used for token-based authentication
user	string	Conditional	Used for username/password authentication
pass	string	Conditional	Password, used together with user
echo	bool	No	Whether to echo messages published by this client back to its own subscriptions; default true
sig	string	Conditional	Signature of the nonce, used for NKey authentication
jwt	string	No	User JWT for access control
nkey	string	No	NKey public key
no_responders	bool	No	Whether to enable the feature that immediately returns an error when there are no subscribers
headers	bool	No	Whether message Headers are supported

PUB

The client publishes a message to the server.

Format:

PUB <subject> [reply-to] <#bytes>\r\n[payload]\r\n

Fields:

Field	Description
subject	Target Subject for the message (required)
reply-to	Optional reply address; subscribers can respond to this Subject
#bytes	Number of bytes in the Payload (required; use 0 for no content)
payload	Message content, immediately following the control line, ending with \r\n

Examples:

# Publish a message
PUB FOO 11\r\n
Hello NATS!\r\n

# Publish with reply-to
PUB FRONT.DOOR JOKE.22 11\r\n
Knock Knock\r\n

# Empty Payload
PUB NOTIFY 0\r\n
\r\n

HPUB

Publish a message with custom Headers; Header format is the same as HTTP/1.

Format:

HPUB <subject> [reply-to] <#header bytes> <#total bytes>\r\n[headers]\r\n\r\n[payload]\r\n

The Header section begins with NATS/1.0\r\n, followed by key-value pairs in Name: Value\r\n format, ending with a blank line (\r\n).

Example:

HPUB FOO 22 33\r\n
NATS/1.0\r\n
Header: value\r\n
\r\n
Hello NATS!\r\n

Here #header bytes = 22 (length of the Header section including the trailing blank line) and #total bytes = 33 (total length of Header + Payload).

SUB

The client subscribes to a Subject.

Format:

SUB <subject> [queue group] <sid>\r\n

Fields:

Field	Description
subject	Subject to subscribe to; supports wildcards
queue group	Optional queue group name; only one subscriber in the same queue group receives each message
sid	A subscription ID unique within this connection; at the protocol level it is a string type (not limited to numbers); used to identify subscriptions in subsequent UNSUB and message delivery

Examples:

# Normal subscription
SUB FOO 1\r\n

# Queue group subscription
SUB BAR workers 44\r\n

# sid can be any string
SUB BAZ my-sub-id\r\n

UNSUB

Unsubscribe, or set an automatic unsubscription after receiving N messages.

Format:

UNSUB <sid> [max_msgs]\r\n

Examples:

# Unsubscribe immediately
UNSUB 1\r\n

# Auto-unsubscribe after receiving 5 more messages
UNSUB 1 5\r\n

MSG

The server pushes a message to a subscriber.

Format:

MSG <subject> <sid> [reply-to] <#bytes>\r\n[payload]\r\n

Examples:

# Without reply-to
MSG FOO.BAR 9 11\r\n
Hello World\r\n

# With reply-to
MSG FOO.BAR 9 GREETING.34 11\r\n
Hello World\r\n

HMSG

The server pushes a message with Headers.

Format:

HMSG <subject> <sid> [reply-to] <#header bytes> <#total bytes>\r\n[headers]\r\n\r\n[payload]\r\n

The Header format is the same as HPUB, beginning with NATS/1.0\r\n.

The Header status line can carry a status code and description text in addition to NATS/1.0. For example, when a client has set no_responders: true in CONNECT and performs a request-reply to a Subject with no subscribers, the server returns:

HMSG FOO 1 16 16\r\n
NATS/1.0 503\r\n
\r\n
\r\n

Here 503 means No Responders; the client can immediately know there is no available server rather than waiting for a timeout.

PING and PONG

Used for connection keep-alive and connection readiness confirmation.

Format:

PING\r\n
PONG\r\n

PING/PONG serves two purposes:

1. Connection readiness confirmation: During the handshake, after the client sends CONNECT it proactively sends PING; upon receiving PONG the connection is confirmed ready.
2. Connection keep-alive: The server sends PING to the client at fixed intervals; the client must respond with PONG within the timeout, or the server will close the connection with a Stale Connection error. The client can also proactively send PING, and the server will respond with PONG. Normal data traffic (such as PUB) also resets the keep-alive timer.

+OK and -ERR

Server protocol responses.

Format:

+OK\r\n
-ERR '<error message>'\r\n

+OK is only sent when verbose: true is set in CONNECT, to acknowledge each received protocol message. By default, clients set verbose: false to avoid unnecessary traffic.

-ERR falls into two categories: errors that close the connection and errors that preserve it.

Connection-closing errors:

Error Message	Description
Unknown Protocol Operation	An unrecognized command was received
Attempted To Connect To Route Port	Client mistakenly connected to the cluster's internal port
Authorization Violation	Authentication failed
Authorization Timeout	Client failed to complete authentication within the timeout after connecting (default 1 second)
Invalid Client Protocol	The protocol version number in CONNECT is invalid
Maximum Control Line Exceeded	Subject or control line exceeds the maximum length (default 1024 bytes)
Parser Error	The protocol message could not be parsed
Secure Connection - TLS Required	Server requires TLS but the client did not use it
Stale Connection	Client has not responded to PING for a long time
Maximum Connections Exceeded	Server connection count reached the limit (default 64K)
Slow Consumer	Client is consuming too slowly; server's pending send buffer has reached the limit (default 10MB)
Maximum Payload Violation	Payload exceeds the server's max_payload limit

Connection-preserving errors (no disconnect):

Error Message	Description
Invalid Subject	Subject format is invalid
Permissions Violation for Subscription to <subject>	No subscription permission for this Subject
Permissions Violation for Publish to <subject>	No publish permission for this Subject

Subject Naming Rules

Subjects consist of letters, numbers, and UTF-8 characters, with . as the level separator.

Valid examples:

FOO
foo.bar
FOO.BAR.BAZ
foo.bar.1

Invalid examples:

FOO. BAR      # cannot contain spaces
foo..bar       # cannot have an empty token

Wildcards

NATS supports two wildcards, which can only be used in SUB, not in PUB.

Single-level wildcard *

Matches one token. Can appear at any level position.

foo.*.baz  matches foo.bar.baz, does not match foo.bar.qux.baz
foo.*      matches foo.bar, does not match foo.bar.baz

Multi-level wildcard >

Matches one or more tokens; must appear at the last position in the Subject.

foo.>   matches foo.bar, foo.bar.baz, foo.bar.baz.qux
>       matches all Subjects

Wildcards must be standalone tokens; foo* and f*o are invalid.

Framing and Parsing

Protocol parsing consists of two steps:

1. Read the control line: scan the byte stream for \r\n, then parse fields according to the command word
2. Read the Payload: the control line contains a #bytes field; read the corresponding number of bytes, then consume the trailing \r\n

For PING, PONG, +OK, -ERR, SUB, and UNSUB, the control line is the complete message and no Payload is involved.

For PUB and MSG, after the control line is parsed, an additional #bytes + 2 bytes must be read (Payload content + trailing \r\n).

For HPUB and HMSG, the control line contains two length fields: #header bytes and #total bytes. When parsing, first read #total bytes + 2 bytes; the first #header bytes of those form the Header section (containing the NATS/1.0\r\n status line, key-value pairs, and the trailing blank line), and the remaining bytes form the Payload.

When #bytes = 0 (PUB/MSG) or #total bytes = #header bytes (HPUB/HMSG, meaning no Payload), the Payload is empty, but the trailing \r\n (i.e., 2 bytes) still needs to be consumed.
